Contributor

Using Ignition version 7.8.4 (b2016082217) | 64-bit

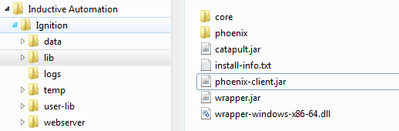

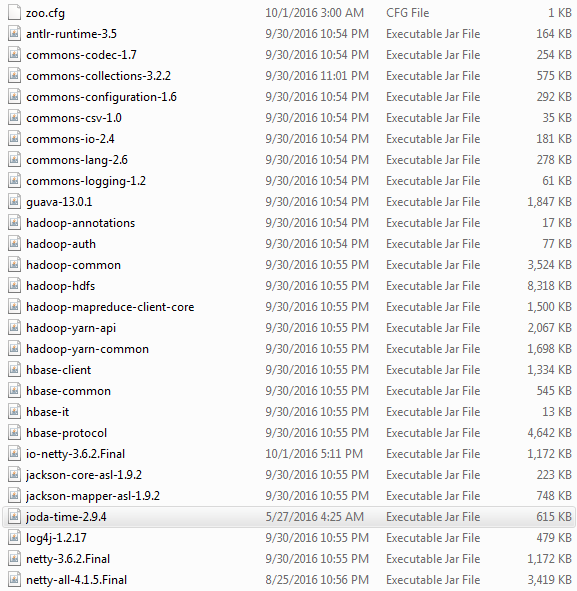

Copy dependencies needed to make a connection to the Apache Phoneix Server werecopied into Ignition\lib

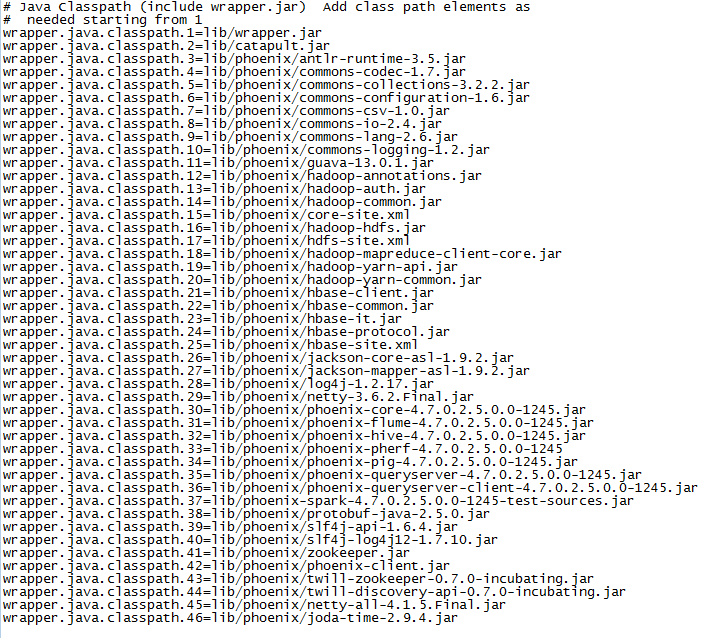

Edit Igntion\data\ignition.conf to register the dependacy with Ignition's boot strap process


Restart Nifi and then begin the process of configuring JDBC drivers by selecting the drivers link in the Databases section of Ignition management console


Select create new JDBC Driver on the Drivers Home Page

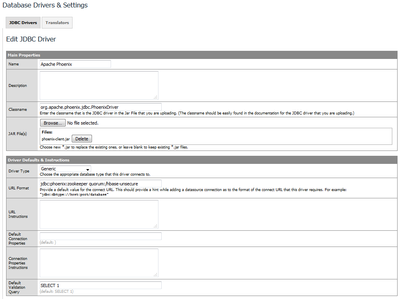

Complete and submit the driver properties page using the following as a guide


Now select connections from the data bases menu


and create new database connection from the connections home page

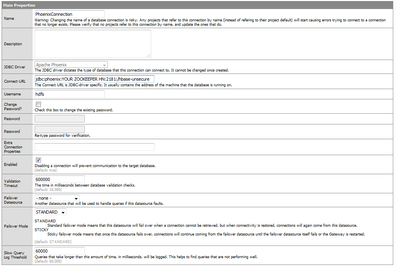

Complete and submit the connection properties dialog

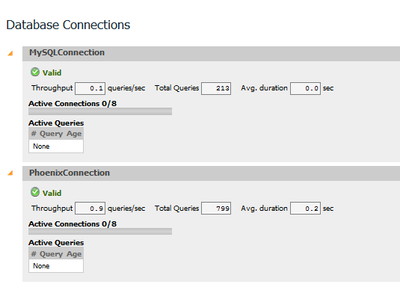

After successfully submitting the configuration the connection should appear on the connections home page

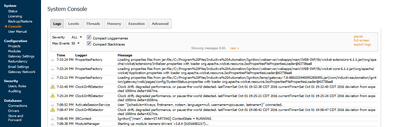

If there are any issues with the driver or connection they can be found in the log of the system console


With the connection configured we can now added data to the HMI application from queries of the phoenix server

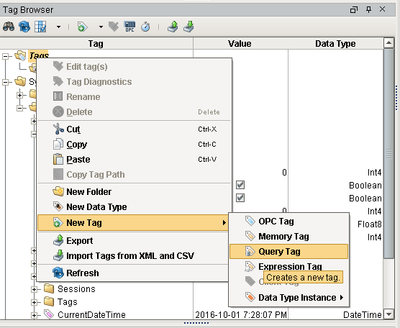

Select new query tag

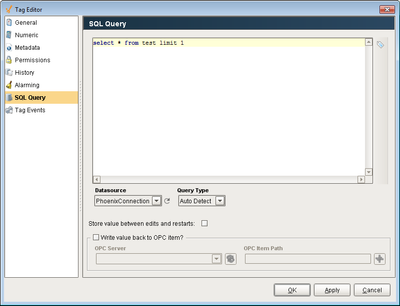

define and the SQL statement



309 Views
Comments

Nice writeup @wsalazar. I think you can simplify your classpath setup by only including the /usr/hdp/current/phoenix-client/phoenix-client.jar and the XML configuration files (core-site, hdfs-site, hbase-site). The phoenix-client.jar will contain all of the classes necessary to connect to HBase using the Phoenix (thick) JDBC driver.
