Cloudera Machine Learning (and Cloudera Data Science Workbench) is built on a very robust and flexible framework to ease integration with third parties. In this article, I decided to explore the integration of Teradata with CML via ODBC.



A few notes before I dive in:

  • I could have easily used JDBC via JayDeBeApi (see my previous article), but where is the fun in that
  • This article could be generalized to more ODBC connections, provided proper parameters are setup

To get a fully rounded tutorial, I will go through these 3 steps:

  1. Step 1 (optional if you already have a Teradata instance): Setting up Teradata Vantage in AWS
  2. Step 2: Create a custom image with Teradata driver
  3. Step 3: Configure and run python to Teradata ODBC

Step 1: Setting up Teradata Vantage in AWS

If you want to do development testing of Teradata, you can use Teradata Vantage Developer on the AWS Market Place. I am not going to dive too much into this as this configuration may change as Teradata evolves.

Pre-Requisites

The Teradata Vantage Developer is an AWS CloudFormation template, that requires the following assets to be pre-created:

  • An Internet Gateway
  • A VPC associated with this IGW (and DNS / DNS Hostnames support)
  • A subnet (with a route to the IGW and Public IP creation on launch)
  • A placement group

Setup

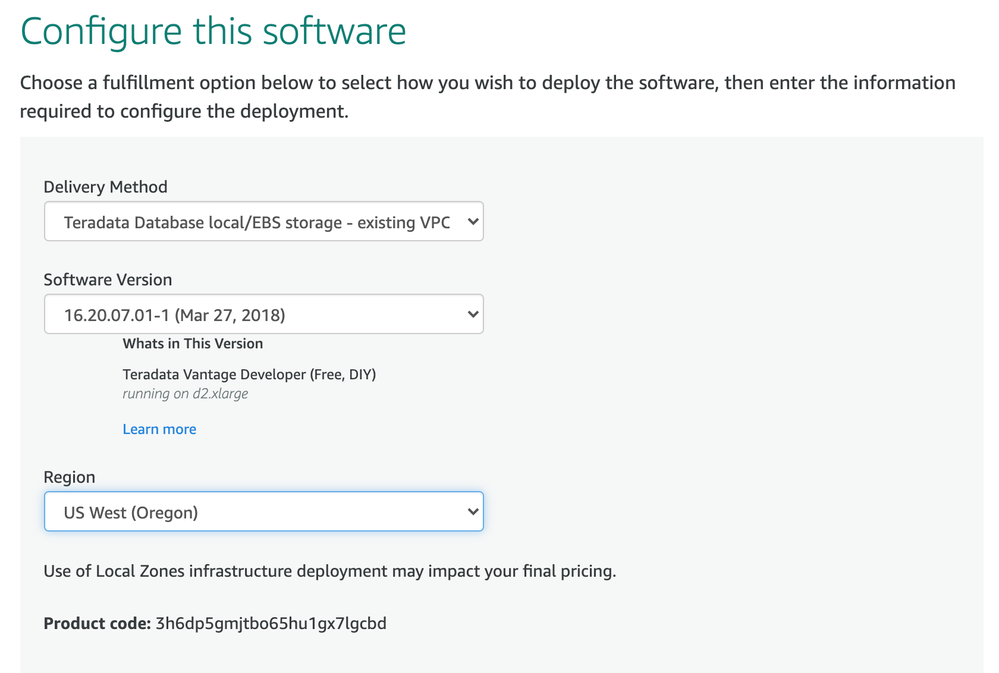

  1. Once the assets are created, go to Teradata Vantage Developer and select your configuration (make sure you select the same region as the assets you created):
    Screen Shot 2020-06-04 at 1.49.30 PM.png

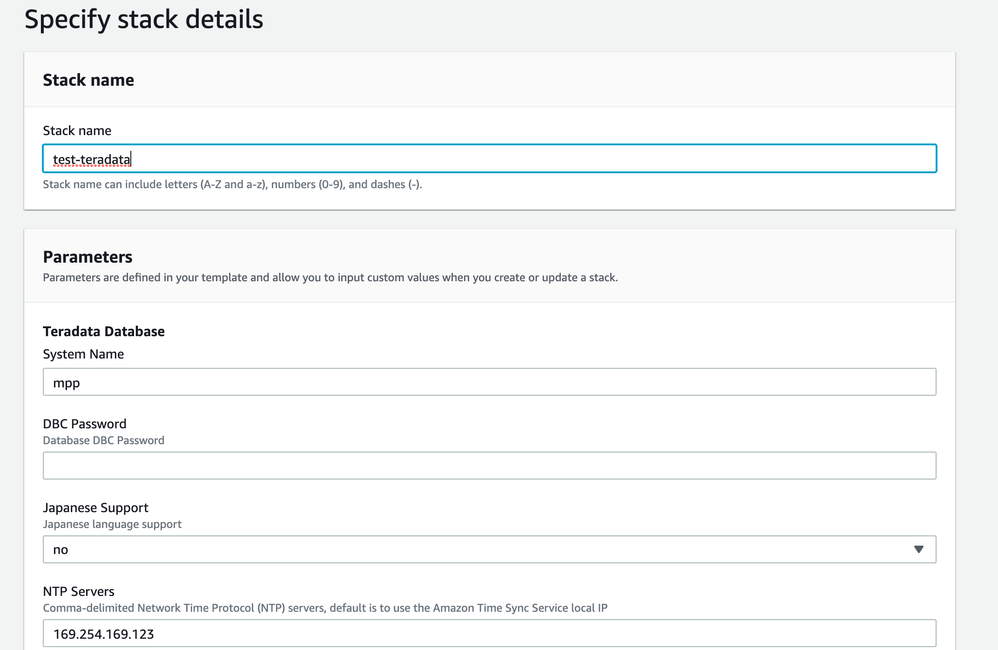

  2. From this configuration, launch the CloudFormation template and fill the parameters with the AWS assets you created:
    Screen Shot 2020-06-04 at 1.55.15 PM.png
  3. The template will create two nodes by default. We will connect to one of them to create a test user:
    $ ssh ec2-user@[your_public_hostname]
    ec2-user@SMP001-01:~> bteq

    Teradata BTEQ 16.20.00.01 for LINUX. PID: 17205
    Copyright 1984-2017, Teradata Corporation. ALL RIGHTS RESERVED.
    Enter your logon or BTEQ command:
    .LOGON
    UserId: dbc
    Password: [password_set_in_cf_template]

    CREATE user test AS password=test perm = 200000000, SPOOL = 100000000;
    ​
  4. You can then connect with your favorite SQL editor to test the connection and run table creation:
    CREATE TABLE "test".TEST_TABLE (
    COLUMN1 VARCHAR(100),
    COLUMN2 VARCHAR(100)
    ) ;​

Step 2: Create a custom image with Teradata driver

  1. I created the following image by following the steps the documentation on custom engines
    #Dockerfile

    FROM 	docker.repository.cloudera.com/cdsw/engine:11-cml-2020.04-1

    WORKDIR /tmp

    #The RUN commands that install an editor
    #For example: RUN apt-get install myeditor

    RUN  apt-get autoremove unixodbc -y

    RUN  apt-get update -y
    RUN  apt-get install lib32stdc++6 -y
    RUN  apt-get install wget -y
    RUN wget [LOCATION_OF_DRIVERS]
    RUN tar -xzvf tdodbc1620__ubuntu_indep.16.20.00.87-1.tar.gz
    RUN dpkg -i tdodbc1620/tdodbc1620-16.20.00.87-1.noarch.deb
    RUN  apt-get install -y python-pyodbc

    A few notes on this image:
    1. I removed the unixodbc because I read that it was causing issues with pyodbc but it may not be required
    2. You can find a built image on my dockerhub here

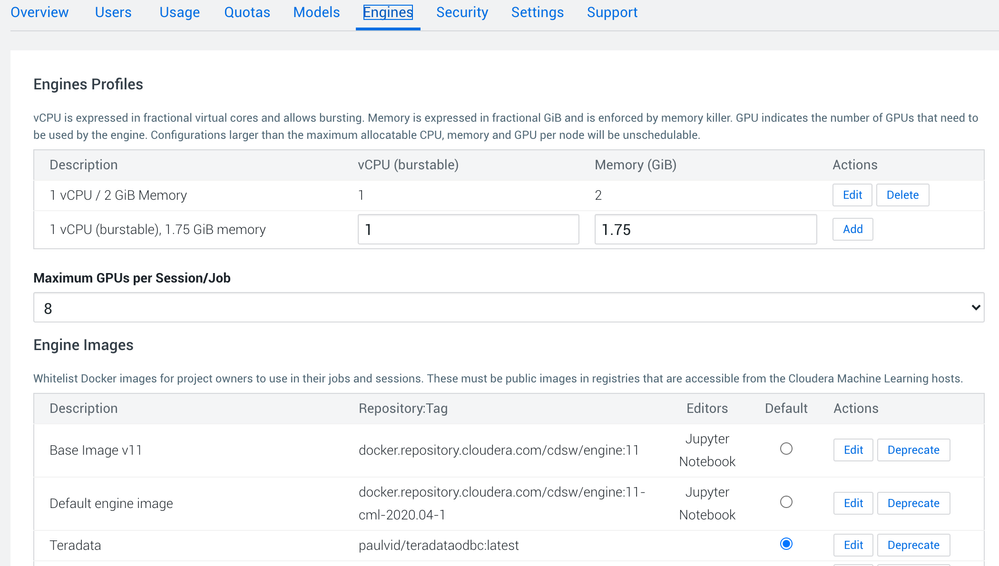

  2. Finally, connect to CML and add this new engine:
    Screen Shot 2020-06-04 at 2.28.26 PM.png

Step 3: Configure and run python to Teradata ODBC

  1. Go to your workbench in a new project, and create a session with the engine you created.
  2. Then run the following:
    pip3 install pyodbc
  3. After it is installed, go to your odbc.ini file:
    vi /home/cdsw/.odbc.ini​
  4. Configure your file as follows:
    [ODBC Data Sources]

    Teradata ODBC DSN = Teradata ODBC Driver 16.20
    TEST = My DSN Description
    [TEST]
    Driver = /opt/teradata/client/16.20/odbc_64/lib/tdataodbc_sb64.so
    Description = Teradata database
    DBCName = [your_teradata_hostname]
    UID = test
    PWD = test
  5. Finally, you can run the following code to test:
    import pyodbc
    import pandas as pd

    conn = pyodbc.connect('DSN=TEST')

    # Define Cursor
    cus=conn.cursor()

    query = "select * from test.TEST_TABLE;"

    # Execute SQL statement to get current datetime and store result in cursor
    cus.execute(query)

    # Display the content of cursor
    row = cus.fetchone()
    print(row)

    # Use Pandas to execute and retrieve results
    df = pd.read_sql(query, conn)
    print(df)

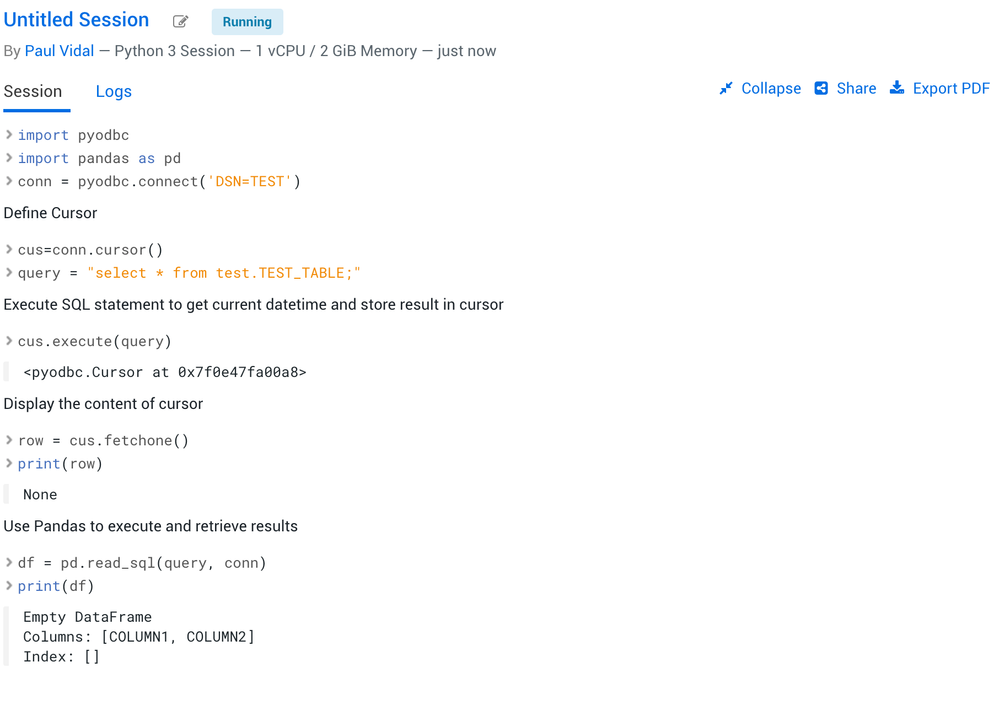

The output in the workbench should look something like the following:

Screen Shot 2020-06-04 at 2.37.44 PM.png
