The intent of this article is to show how NiFi policies in Ranger map to what you would see when using NiFi's default file based authorizer via the NiFi UI. This article will cover what access each of the policies granted to the entities (user and server) that assigned to them.

There are controller level policies and component level policies in NiFi.

The controller level policies are not tied to any specific component uuid. In Ranger those policies will just show as

/<some policy name>

-

These include the following:


Ranger Policy (Base policies):NiFi Policies (Hamburger menu)Ranger permissions description:
/resources *** Note: No policies will be available until this policy is manually added.N/AThis policy allows Ranger to retrieve a listing of all available policies from NiFi. The server/user from the keystore being used by Ranger must be granted “read” privileges to this resource.
/flow


* See note [3] below
View the user interfaceRead/View - This policy gives users the ability to view the NiFi UI. All users must be granted “read” privileges to this policy or they will not be able to open the NiFi UI. If you are running a NiFi Cluster and/or accessing Your NiFi via a proxy, You need to grant all Nodes and any proxies read access to this policy as well.

Write/Modify - N/A
/systemView system DiagnosticsRead/View - Gives granted users access to the system diagnostics. In a NiFi cluster, nodes will need to access as well to display system diagnostic stats returned by other nodes.

Write/Modify - N/A
/controllerAccess the controllerRead/View - Gives granted users the ability to view:- Controller thread pull configuration- Cluster management page- Controller level Reporting tasks- Controller level Controller services

Write/Modify - Gives granted users the ability to create/modify:- Controller thread pull configuration- Cluster management page- Controller level Reporting tasks- Controller level Controller services
/countersAccess countersRead/View - Gives granted users ability to view counters

Write/Modify - Gives granted users ability to modify counters
/provenanceQuery provenanceRead/View -Gives granted users ability to run provenance queries or access Provenance lineage graphs. Write/Modify - N/A
/restricted-components

* See note [1] below
Access restricted componentsRead/View - N/A

Write/Modify - Gives granted users ability to add components to the canvas that are tagged as “restricted”
/proxy

* See note [2] below
Proxy user requestsRead/View - Allows proxy servers to send request on behalf of other users.

Write/Modify - Required
/site-to-siteRetrieve site-to-site details
/policies *** This policy has no purpose when using ranger and does not need to be used.Access all policiesRead/View - Gives granted users the ability to view existing policies.

Write/Modify - Gives granted users the ability to create new policies and modify existing policies.
/tenants *** This policy has no purpose when using Ranger and does not need to be used.Access users/user groupsRead/View - Gives granted users the ability to view currently authorized users and user groups.

Write/Modify - Gives granted uses the ability to add, delete, and modify existing users and user groups.

[1] new sub policies introduced for "/restricted-components" as of HDF 3.2. See following article for details:

https://community.hortonworks.com/articles/226382/nifi-restricted-components-policy-descriptions.htm...

[2] All nodes in your NiFi cluster must be assigned to the "/proxy" policy.

[3] All users must at a minimum be assigned to the "/flow" policy in order to view the NiFi UI.

-

The component level granular policies are based on the components assigned uuid. For connections, the policies are enforced based upon the processor component the connection originates from.

-

This includes the following policies:


Ranger Component based policies:NiFi Component based policies: componentEquivalent NiFi file based authorizer policy:PolicyRanger permissions description:
/data-transfer/input-ports/<uuid>Each NiFi remote input port is assigned a unique <uuid>Send data via site-to-siteBoth read and write is required and should be granted to the source NIFi servers sending data to this NiFi via this input port.
/data-transfer/output-ports/<uuid>Each NiFi remote output port is assigned a unique <uuid>Retrieve data via site-to-siteBoth read and write is required and should be granted to the source NIFi servers pulling data from this NiFi via this output port.
/process-groups/<uuid>Each NiFi process group is assigned a unique <uuid>View the component


Modify the component
Read - (allows user to view process group details only)

Write - (allows user to start, stop or delete process group. Users are able to added components inside process group and add controller services to process group)
/data/process-groups/<uuid>Each NiFi process group is assigned a unique <uuid>View the data


Modify the data
Read - (allows user to view data was processed by components in this process group and list queues)

Write - (allows users to empty queues/purge data from queues within process group)
/policies/process-groups/<uuid> *** not needed when using RangerEach NiFi process group is assigned a unique <uuid>View the policies

Modify the policies
Read - N/A in Ranger


Write - N/A in Ranger

/processors/<uuid>Each NiFi processor is assigned a unique <uuid>View the component


Modify the component
Read - (Allows user to view processor configuration only)


Write - (Allows user to start, stop, configure and delete processor)

/data/processors/<uuid>Each NiFi processor is assigned a unique <uuid>View the data

Modify the data
Read - (allows user to view data processed this processor and list queues on this processors outbound connections)

Write - (allows users to empty queues/purge data from this processors outbound connections)
/policies/processors/<uuid> *** Not needed when using RangerEach NiFi processor is assigned a unique <uuid>View the policies

Modify the policies
Read - N/A in Ranger

Write - N/A in Ranger
/controller-services/<uuid>Each NiFi controller services is assigned a unique <uuid>

View the component


Modify the component

Read - (Allows user to view controller service configuration only)


Write - (Allows user to enable, disable, configure and delete controller services)


/provenance-data/<component-type>/<component-UUID>
*** New in HDF 3.2 (Apache NiFi 1.7)
Each NiFi component is assigned a unique <uuid>view provenanceRead - Allows users to view provenance events generated by this component

Write - N/A in Ranger
/operation/<component-type>/<component-UUID>
*** New in HDF 3.3 (Apache NiFi 1.8)
Each NiFi component is assigned a unique <uuid>operate the componentRead - N/A in Ranger

Write - Allows users to operate components by changing component run status (start/stop/enable/disable), remote port transmission status, or terminating processor threads

There will be a unique policy for each and every component based on the specific components assigned uuid available.

Component level authorizations are inherited from the parent process group when no specific processor or sub process group component level policy is set.

Ranger supports the " * " wildcard when assigning policies.

-

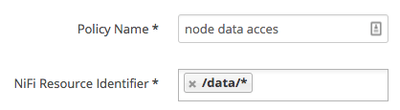

In a NiFi cluster, all nodes must be granted the ability to view and modify component data in order for user to list or empty queues in processor component outbound connections. With Ranger this can be accomplished by using the a wildcard to grant all the NiFi nodes read and write to "/data/*" NiFi resource.


*** Users should not be given global access to all data, but instead be restricted to specific process groups they have been granted access to.

*** Also note at time of writing Ranger groups are not supported by NiFi for authorization.

UPDATE: Ranger based group support was added as a new feature/capability in HDF 3.1.x

4,423 Views
Comments
Super Collaborator

@Matt Clarke : question on the /resources policy - The server running Ranger should be granted “read” privileges to this resource. How do we accomplish this? Is SSL for Ranger mandatory in this case?

Hi @Matt Clarke run into a problem when trying to add component base granular policy /process-group/<uuid>. It should be /process-groups/<uuid> there is a missing 's' please added whenever you can!

Master Guru

@Arun A K

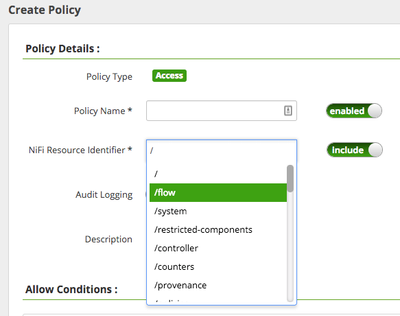

Once NiFi is secured access to any resource in NiFi requires authentication and authorization. It is not required but highly recommended. When you go to add a new policy in ranger, you need to provide the exact "Nifi Resource identifier". If The Ranger user is able to communicate with NiFi securely, it can retrieve that list of resources and the user can just select from the list:


Otherwise, no list will be returned and you must know the exact string to enter.

So you do not need to SSL enable Ranger to accomplish this. NiFi can still communicate with an non secured ranger to retrieve authorizations.

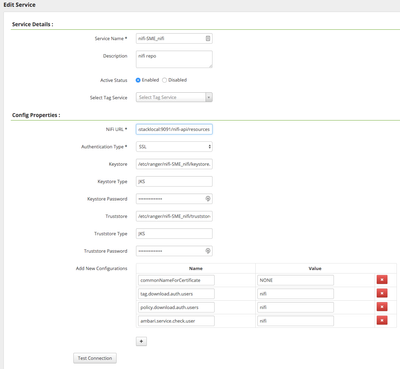

But you can configure Ranger to talk to a secured NiFi to obtain the resource listing:


As seen above, the keystore and truststore configured her in Ranger will be used to connect to the nifi resources rest api endpoint to retrieve that resource listing. The keystore and truststore must be owned by the ranger user. The PrivateKeyEntry in the keystore must be trusted by the target NiFI truststore and the truststore used here must be able to trust the server certificate returned by the Target Nifi instance.

Thanks,

Matt

Master Guru
@Felix Albani

Thank you for your feedback... I have made the correction.
