NiFi PublishKafka_0_10 processor

avatar
Contributor

Hi,

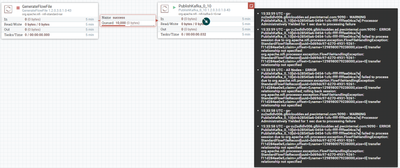

I am trying to publish to a kafka topic on a kafka broker. I am receving the error such as


relationship not specified; rolling back session: {}
org.apache.nifi.processor.exception.FlowFileHandlingException: StandardFlowFileRecord[uuid=be3d1509-fdc4-4235-a760-c8740a05883b,claim=,offset=0,,size=0] transfer relationship not specified
       at org.apache.nifi.controller.repository.StandardProcessSession.checkpoint(StandardProcessSession.java:248)
       at org.apache.nifi.controller.repository.StandardProcessSession.commit(StandardProcessSession.java:318)
       at org.apache.nifi.processor.AbstractProcessor.onTrigger(AbstractProcessor.java:28)
       at org.apache.nifi.controller.StandardProcessorNode.onTrigger(StandardProcessorNode.java:1118)
       at org.apache.nifi.controller.tasks.ContinuallyRunProcessorTask.call(ContinuallyRunProcessorTask.java:147)
       at org.apache.nifi.controller.tasks.ContinuallyRunProcessorTask.call(ContinuallyRunProcessorTask.java:47)
       at org.apache.nifi.controller.scheduling.TimerDrivenSchedulingAgent$1.run(TimerDrivenSchedulingAgent.java:132)
       at java.util.concurrent.Executors$RunnableAdapter.call(Executors.java:511)
       at java.util.concurrent.FutureTask.runAndReset(FutureTask.java:308)
       at java.util.concurrent.ScheduledThreadPoolExecutor$ScheduledFutureTask.access$301(ScheduledThreadPoolExecutor.java:180)
       at java.util.concurrent.ScheduledThreadPoolExecutor$ScheduledFutureTask.run(ScheduledThreadPoolExecutor.java:294)
       at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1142)
       at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:617)
       at java.lang.Thread.run(Thread.java:745)
1 ACCEPTED SOLUTION

avatar

@dhieru singh

Will you post the configuration of the GenerateFlowFile processor?

Are you seeing the same error now?

View solution in original post

20 REPLIES 20

avatar

@dhieru singh

What does the config of the PublishKafka processor look like?

avatar
Contributor

kafkaconfig2.pngHi @Wynner Please find attached image


avatar

@dhieru singh

What about the Scheduling and Properties tabs?

avatar
Contributor

Hi @Wynner

Thanks for your response. Here is the properties tab


avatar
Contributor

@Wynner

Here is the scheduling tab.


avatar
@dhieru singh

So, there is a Kafka Broker running on the same system as NiFi?

Is this an HDF cluster?

Is 9092 the correct port?

avatar
Contributor

Thanks for the response @Wynner

Yes this is a kafka broker running on the same system.

No it is not a HDF cluster

yes 9092 is the correct port

Thanks

avatar
@dhieru singh

Try putting the actual host name instead of localhost for the Kafka Broker property.

avatar
Contributor

@Wynner

Thanks a lot for your patience.

I did try putting in the hostname instead of IP address but no success

avatar

@dhieru singh

I was able to replicate the error when I tried to write 0 byte files.

Use the GenerateFlowFile processor to create ten 100 byte files, instead of zero byte files

avatar
Contributor
@Wynner

I really appreciate your help.

I tried using the GenerateFlowFileProcessor to create non zero bytes files, started it, it was successful hence it got queued on success. However it is the still same news.

Dhieru

avatar
@dhieru singh

Did you clear all of the zero byte files from queue on the connection first?

avatar
Contributor

@Wynner

Yes I did empty the queue.

avatar

@dhieru singh

Will you post the configuration of the GenerateFlowFile processor?

Are you seeing the same error now?

avatar
@dhieru singh

Okay, so you are now getting a different error. Try setting the run schedule to 30 seconds so you don't generate so many flow files and fill up the queue.

It is probably trying to write all of the files at once and hitting the timeout.

Clear the queue, set the run schedule to 30 seconds on the GenerateFlowFile processor and then turn on the PublishKafka processor.

avatar
Contributor

@Wynner Thanks The generate flow file processor works however there is error on the PublishKafka side says Timeout exception,



avatar
Contributor

@Wynner

Thanks for the help it is hihgly appreciated

avatar

@dhieru singh

Are you able to Publish messages to the Kafka broker now?

avatar
Contributor

yes @Wynner

I created a new topic and published it to that, it is working, no other changes except for creating a new topic on kafka broker. I generated a 100 B 10 files and published it, it worked like charm. Now I will move on from this PoC to a more solid use case. Thanks for you help and patience Highly appreciated.

avatar
Explorer

I had the same problem with PublishKafka_0_10 processor and I found that there is an open issue in JIRA

https://issues.apache.org/jira/browse/NIFI-3957

Meanwhile I solved the problem controlling the size of the FlowFile before with RouteOnAttribute
