Installing the Alarm Fatigue Demo via Cloudbreak:

There are multiple ways to deploy the Alarm Fatigue Demo via Cloudbreak. Below are four options:

1) Deploy via the Cloudbreak UI

a) Login to https://cbdtest.field.hortonworks.com

b) Select your credentials – if you credentials don’t exist, create them under “Manage Credentials”

c) Once your credentials are selected, click “Create Cluster”

d) Make-up a cluster name and choose the Availability Zone (SE) and then click “Setup Network and Security"

e) “fieldcloud-openstack-network” should be selected and click “Choose Blueprint”

f) Select the Blueprint called “alarm_fatigue_v2”

Host Group 1 (Select Ambari Server, alarm-fatigue-demo and pre-install-java8)

Host Group 2 (select pre-install-java8)

Host Group 3 (select pre-install-java8)

g) Click on “Review and Launch”

e) Click on “Create and start cluster” (After clicking, the deployment via Cloudbreak will likely take 30-50 minutes, go get a coffee)

2) Deploy via Bash Script (specifying configuration file)

Create file .deploy.config with the following

Version=0.5

CloudBreakServer= https://cbdtest.field.hortonworks.com

CloudBreakIdentityServer= http://cbdtest.field.hortonworks.com:8089

CloudBreakUser=admin@example.com

CloudBreakPassword=yourpassword

CloudBreakCredentials=

CloudBreakClusterName=alarmfatigue-auto

CloudBreakTemplate=openstack-m3-xlarge

CloudBreakRegion=RegionOne

CloudBreakSecurityGroup=openstack-connected-platform-demo-all-services-port-v3

CloudBreakNetwork=fieldcloud-openstack-network

CloudBreakAvailabilityZone=SE

Change the highlighted

Then execute the following:

wget -O - https://raw.githubusercontent.com/ryancicak/northcentral_hackathon/master/CloudBreakArtifacts/cloudb...| bash

3) Deploy via Bash Script inputting configurations (while prompted)

Just execute

wget -O -https://raw.githubusercontent.com/ryancicak/northcentral_hackathon/master/CloudBreakArtifacts/cloudb...| bash

and fill out the information as prompted

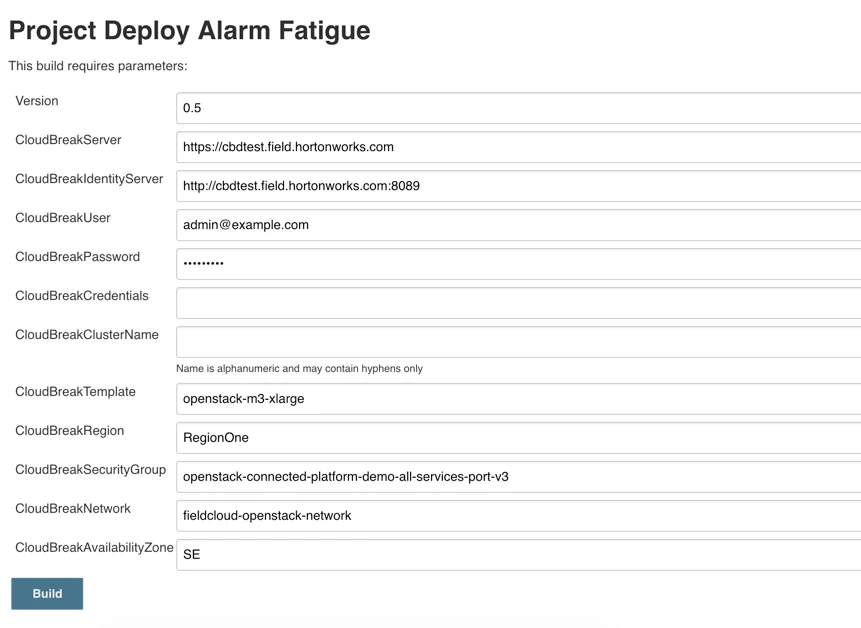

4) Deploy via Jenkins



All four options will deploy install, configure and run all necessary services including "Alarm Fatigue Demo Control"
