In order to setup HTTPs access for LogSearch Portal UI first of all we will need to create the keystore. We will also create truststore as well using the "$JAVA_HOME/bin/keytool" utility. In this example we will be using the self signed certificates.

# mkdir -p /etc/security/serverKeys/

# keytool -genkey -v -alias logsearch -keyalg RSA -keysize 1024 -keystore /etc/security/serverKeys/logsearch.keyStore.jks -validity 3650 -keypass logsearch -storepass logsearch -dname 'CN=erie1.example.com, OU=hwx, O=test, L=Pune, S=Maharashtra, C=IN'

# keytool -genkeypair -alias logsearch -keyalg RSA -keysize 2048 -keypass logsearch -storepass logsearch -validity 3650 -keystore /etc/security/serverKeys/logsearch.trustStore.jks  -dname 'CN=erie1.example.com, OU=hwx, O=test, L=Pune, S=Maharashtra, C=IN' -rfc

.

- In the above example i used CN=erie1.example.com as my LogSearch service is running on the same host.

- Now we will need to make sure that those files has proper read permissions and ownership set correctly.

# chown -R logsearch:hadoop /etc/security/serverKeys/

# ls -la /etc/security/serverKeys/
-rw-r--r--. 1 logsearch hadoop 1399 Feb 24 07:19 logsearch.keyStore.jks
-rw-r--r--. 1 logsearch hadoop 2245 Feb 24 07:38 logsearch.trustStore.jks

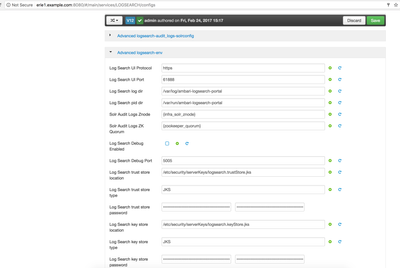

. - Now we can login to ambari UI and navigate to "Log Search" --> "Configs" --> "Advanced" --> "Advanced logsearch-env" and then provide the following details there:

Log Search UI Protocol:   https
Log Search UI Port: 61888
Log Search trust store location: /etc/security/serverKeys/logsearch.trustStore.jks
Log Search trust store type: JKS
Log Search trust store password: logsearch
Log Search key store location: /etc/security/serverKeys/logsearch.keyStore.jks
Log Search key store type: logsearch
Log Search key store password: logsearch

12963-logsearch-https-settings.png .

- Once we enter the above details then we can "Save" the settings and then restart the "Log Search" service.

- Now we should be able to access the "Log Search" using the HTTPs protocol12964-logsearch-ui-login-https.png

.

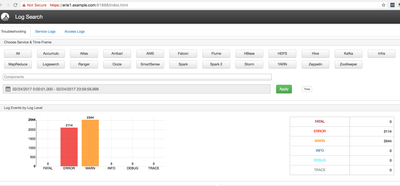

And then the Log Search UI dashboard:


.

Troubleshooting Common Issues:

If we encounter any issue while while running starting up the Log Search after enabling the https then we can look at the file "/var/log/ambari-logsearch-portal/logsearch/logsearch.err", For example if we enter incorrect credentials of store then we might see the following kind of error in our logs:

[main] WARN  org.eclipse.jetty.util.component.AbstractLifeCycle (AbstractLifeCycle.java:212) - FAILED ServerConnector@1cb37ee4{SSL-http/1.1}{0.0.0.0:61888}: java.io.IOException: Keystore was tampered with, or password was incorrect
java.io.IOException: Keystore was tampered with, or password was incorrect
    at sun.security.provider.JavaKeyStore.engineLoad(JavaKeyStore.java:780)
    at sun.security.provider.JavaKeyStore$JKS.engineLoad(JavaKeyStore.java:56)
    at sun.security.provider.KeyStoreDelegator.engineLoad(KeyStoreDelegator.java:225)
    at sun.security.provider.JavaKeyStore$DualFormatJKS.engineLoad(JavaKeyStore.java:70)
    at java.security.KeyStore.load(KeyStore.java:1445)
    at org.eclipse.jetty.util.security.CertificateUtils.getKeyStore(CertificateUtils.java:55)
    at org.eclipse.jetty.util.ssl.SslContextFactory.loadTrustStore(SslContextFactory.java:884)
    at org.eclipse.jetty.util.ssl.SslContextFactory.doStart(SslContextFactory.java:274)
    at org.eclipse.jetty.util.component.AbstractLifeCycle.start(AbstractLifeCycle.java:68)
    at org.eclipse.jetty.util.component.ContainerLifeCycle.start(ContainerLifeCycle.java:132)
    at org.eclipse.jetty.util.component.ContainerLifeCycle.doStart(ContainerLifeCycle.java:114)
    at org.eclipse.jetty.server.SslConnectionFactory.doStart(SslConnectionFactory.java:64)
    at org.eclipse.jetty.util.component.AbstractLifeCycle.start(AbstractLifeCycle.java:68)
    at org.eclipse.jetty.util.component.ContainerLifeCycle.start(ContainerLifeCycle.java:132)
    at org.eclipse.jetty.util.component.ContainerLifeCycle.doStart(ContainerLifeCycle.java:114)
    at org.eclipse.jetty.server.AbstractConnector.doStart(AbstractConnector.java:256)
    at org.eclipse.jetty.server.AbstractNetworkConnector.doStart(AbstractNetworkConnector.java:81)
    at org.eclipse.jetty.server.ServerConnector.doStart(ServerConnector.java:236)
    at org.eclipse.jetty.util.component.AbstractLifeCycle.start(AbstractLifeCycle.java:68)
    at org.eclipse.jetty.server.Server.doStart(Server.java:366)
    at org.eclipse.jetty.util.component.AbstractLifeCycle.start(AbstractLifeCycle.java:68)
    at org.apache.ambari.logsearch.LogSearch.run(LogSearch.java:89)
    at org.apache.ambari.logsearch.LogSearch.main(LogSearch.java:73)
Caused by: java.security.UnrecoverableKeyException: Password verification failed
    at sun.security.provider.JavaKeyStore.engineLoad(JavaKeyStore.java:778)
    ... 22 more

.
