Working with Infura.io

Calling REST APIs is very easy with Apache NiFi, let's use this to ingest a lot of data about Ethereum blockchains and transactions. We can also ingest and examine network status data.

Infura provides secure, reliable, scalable access to Ethereum and IPFS.

Check out the current status: https://infura.io/status

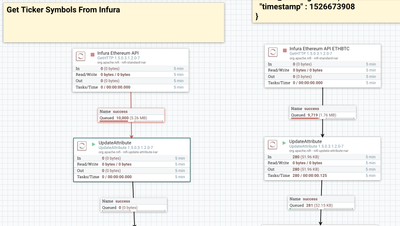

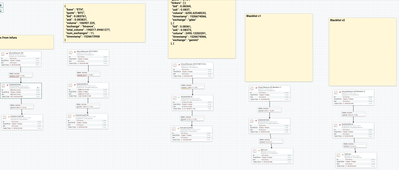

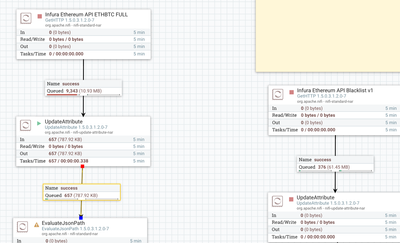

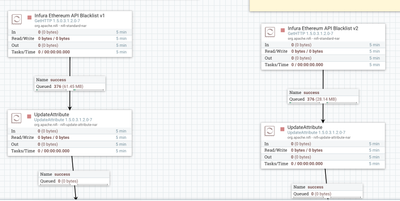

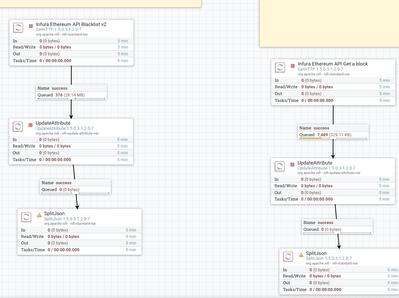

Apache NiFi Flows to Read From the Ethereum Blockchain via Infura REST APIs

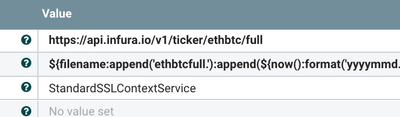

An Example REST Call


We rename the file to make it unique and it note that it is from ethbtcfull API call.

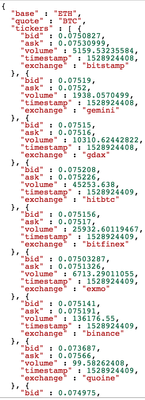

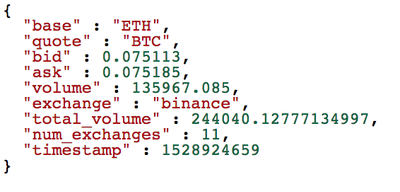

Example Data (JSON)

{"base": "ETH", "quote": "BTC", "tickers": [{"bid": 0.0750827, "ask": 0.07530999, "volume": 5159.53235584, "timestamp": 1528924408, "exchange": "bitstamp"}, {"bid": 0.07519, "ask": 0.0752, "volume": 1938.0570499, "timestamp": 1528924408, "exchange": "gemini"}, {"bid": 0.07515, "ask": 0.07516, "volume": 10310.62442822, "timestamp": 1528924408, "exchange": "gdax"}, {"bid": 0.075208, "ask": 0.075226, "volume": 45253.638, "timestamp": 1528924409, "exchange": "hitbtc"}, {"bid": 0.075156, "ask": 0.07517, "volume": 25932.60119467, "timestamp": 1528924409, "exchange": "bitfinex"}, {"bid": 0.07503287, "ask": 0.0751326, "volume": 6713.29011055, "timestamp": 1528924409, "exchange": "exmo"}, {"bid": 0.075141, "ask": 0.075191, "volume": 136176.55, "timestamp": 1528924409, "exchange": "binance"}, {"bid": 0.073687, "ask": 0.07566, "volume": 99.58262408, "timestamp": 1528924409, "exchange": "quoine"}, {"bid": 0.074975, "ask": 0.075251, "volume": 698.857662, "timestamp": 1528924409, "exchange": "cex"}, {"bid": 0.07494, "ask": 0.07517503, "volume": 12079.03438486, "timestamp": 1528924409, "exchange": "livecoin"}, {"bid": 0.07421999, "ask": 0.07574378, "volume": 106.69757, "timestamp": 1528924410, "exchange": "btc_markets"}]}



Calling INFURA REST APIs

Note: For most use cases you do not need an API Key. Make sure you keep it under their limits and follow all of their terms of service.






API Calls

https://api.infura.io/v2/blacklist

https://api.infura.io/v1/ticker/ethbtc/full

https://api.infura.io/v1/ticker/ethbtc

https://api.infura.io/v1/ticker/symbols

Format The Files Example Expression Language

${filename:append('infurasymbols.'):append(${now():format('yyyymmddHHMMSS'):append(${md5}):append('.json')})}


References:
