Synopsis

  • You are a marketing analyst tasked with developing a BI dashboard for management that reports on website activity in realtime throughout the day for Black Friday, the day after Thanksgiving.
  • Unfortunately, all of the data engineers are busy with other projects and cannot immediately help you.
  • Not to worry. With Hortonworks DataFlow, powered by Apache NiFi, you can easily create a data flow in minutes to process the data needed for the dashboard.

Source Data:

  • Fictitious online retailer Initech Corporation
  • JSON Formatted Clickstream data
  • Your company stores the raw Clickstream log files in HDFS. The JSON formatted log files are written to HDFS directories partitioned by day and hour. For example:
    • /data/clickstream/2016-11-20/hour=00
    • /data/clickstream/2016-11-20/hour=01
    • /data/clickstream/2016-11-20/hour=...
    • /data/clickstream/2016-11-20/hour=23
  • There could also be subdirectories under the hour
  • This directory structure or a similar variant is commonly found in organizations when storing Clickstream logs
  • The JSON data contains nested hierarchies. Sample JSON record:


Solution considerations:

  • New files are written throughout the day for each hour and late arriving data is added to existing hours.
  • Since files are constantly arriving, you need the data flow to always be on and running
  • HBase is a fast and scalable option for the backend datastore:
    • Data is semi-structured JSON
    • HBase does not require a Schema
    • HBase was designed for high throughput writes, whereas Hive is better suited for batch loads
  • Use Apache Phoenix to create a view atop the HBase table:
    • Phoenix creates the schema for reporting
    • Phoenix lets you write ANSI SQL queries against the HBase data
    • Phoenix JDBC driver allows any BI tool to connect

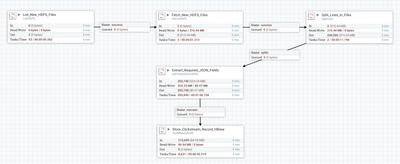

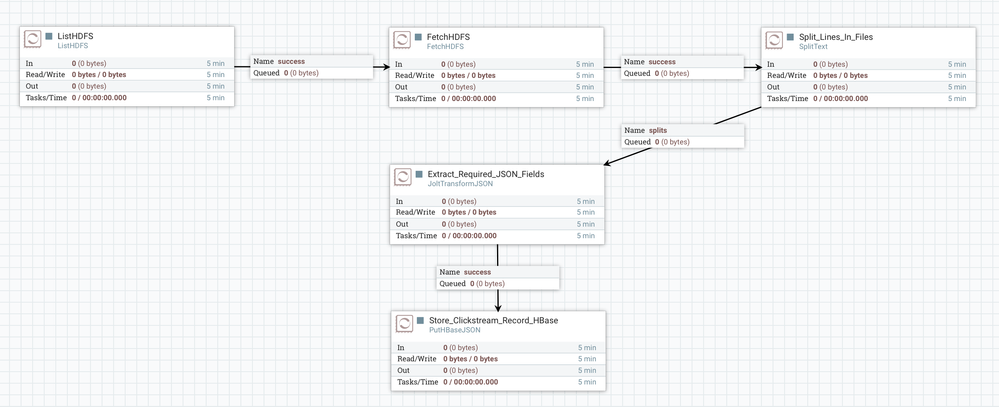

HDF DataFlow Overview:


* You may need to increase the heap size used by NiFi. You will know if/when you start getting the error: java.lang.OutOfMemoryError

Throughput:

  • HDF loaded 215,699 records into HBase in under 33 seconds
  • I'm running HDF on a single node with 64 GB Ram and 16 cores
  • There are other Hadoop and Hadoop related services running on this node including Node Manager, DataNode, Livy Server, RegionServer, Phoenix Query Server, NFSGateway, Metrics Monitor


Step 1:

Create the HBase table. You can easily do this via Apache Zeppelin.

  • Create 1 column family 'pageview'
  • Multiple versions are not needed as there are no updates to this data. Each website hit is unique.


Step 2:

Create the Phoenix view. You can easily do this via Apache Zeppelin.


Step 3:

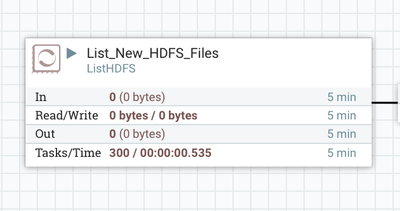

Configure the ListHDFS processor

  • The ListHDFS processor will only list new files as they are written to directories
  • The DataFlow will be constantly running so we do not want to process the same data twice. Thus, the ListHDFS processor will prevent us from processing the same data twice
  • Our top-level directory is the Clickstream data for 2016-11-20
  • ListHDFS will list all new files beneath the subdirectories under the top-level directory of 2016-11-20
  • Notice that the value for 'Directory' is the top-level directory '/data/clickstream/2016-11-20'
  • The value for 'Recursive Subdirectories' is set to 'true' so that all new files will be picked up as they are added
  • The Hadoop Configuration Resources are the full path locations to core-site.xml and hdfs-site.xml



Step 4:

Configure the FetchHDFS processor

  • The ListHDFS processor will list files
  • FetchHDFS will retrieve the contents from the files listed



Step 5:

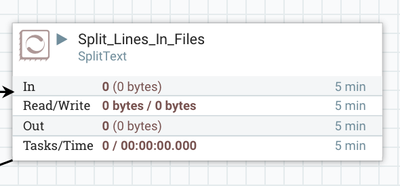

Use the SplitText processor to split each JSON record from the HDFS files

I used the processor as is without any changes, other than renaming it to 'Split_Lines_In_File'


Step 6:

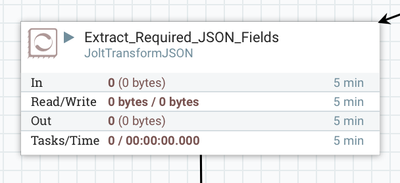

Configure the JoltTransformJSON processor to extract only those fields needed for the dashboard.


We only need the following fields from the JSON data:

  1. event ID - unique identifier for each website hit
  2. event time - time when the website hit occurred
  3. url - url of the page viewed
  4. country - country that the page was served
  5. session id - session id for the user
  6. user cookie
  7. os - the users device os
  8. browser - browser that the user used

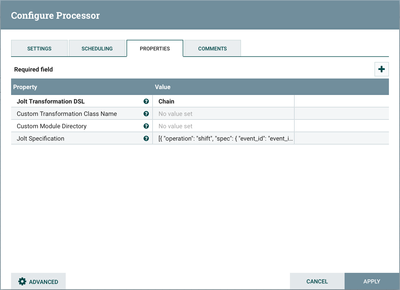

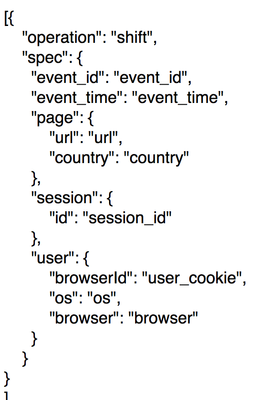

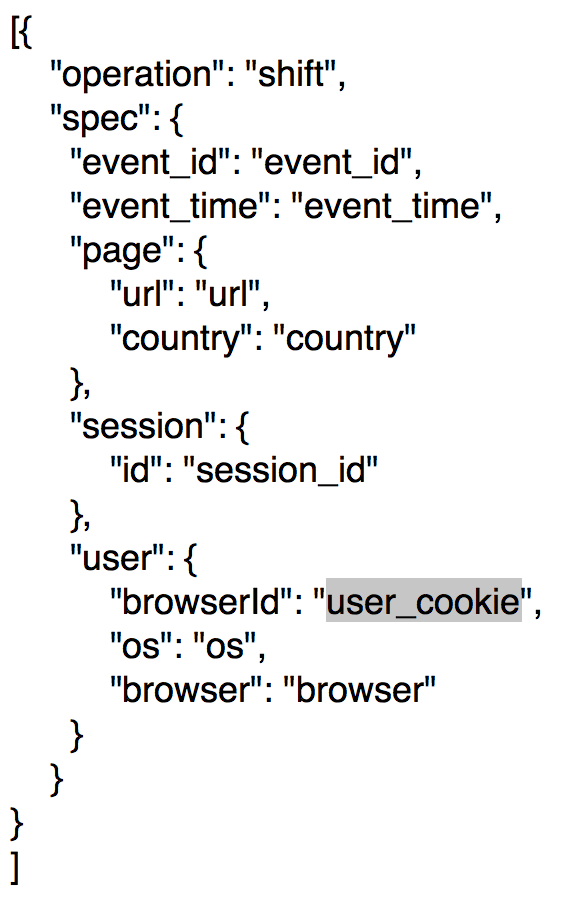

Some of the above fields are child elements for a top-level parent. The property 'Jolt Specification' needs to be set so that we properly extract those fields:



Step 7:

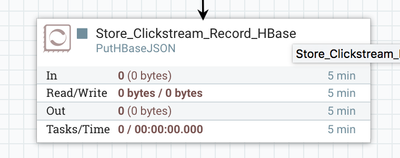

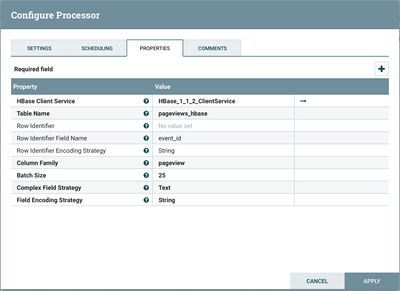

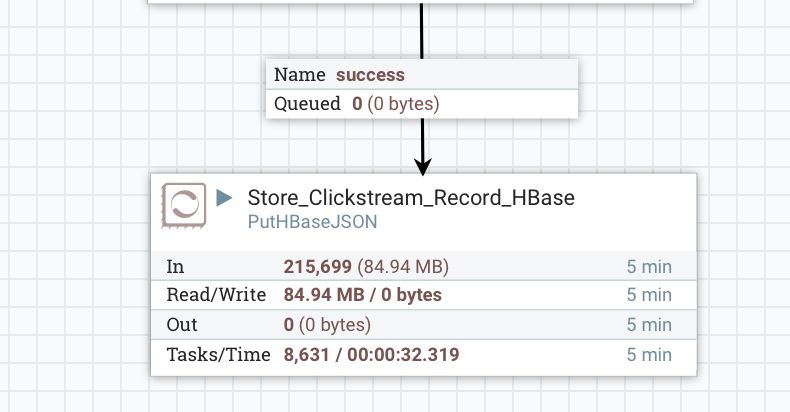

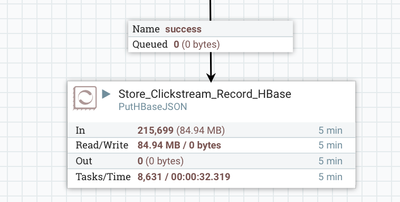

Configure the PutHBaseJSON processor to store the record.

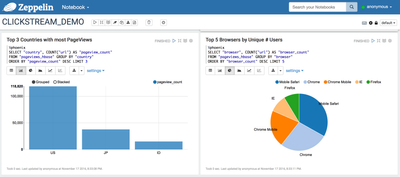

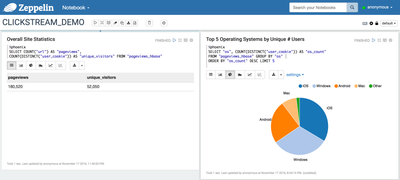

Apache Zeppelin Notebook:
