This is for people preparing to attend my talk on Deep Learning at DataWorks Summit Berling 2018 (https://dataworkssummit.com/berlin-2018/#agenda) on Thursday April 19, 2018 at 11:50AM Berlin time.

Another way to work with Apache MXNet is by using your Apache Zeppelin notebook to run your Python deep learning scripts.

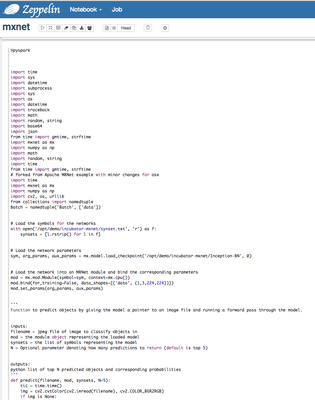

Apache Zeppelin Notebook

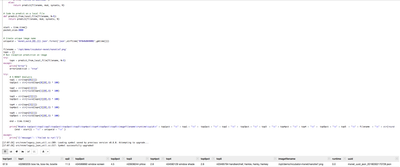

As you can see we can format that data as a table using Apache Zeppelin display technology.

Use this print statement:

print("%table top1pct\ttop1\top2\ttop2pct\ttop3pct\ttop3\ttop4pct\ttop4\ttop5pct\ttop5\timagefilename\truntime\tuuid\n" + top1pct + "\t" + top1 + "\t" +  top2pct + "\t" + top2 + "\t" +  top3pct + "\t" + top3  + "\t" + top4pct + "\t" + top4 + "\t" +  top5pct + "\t" + top5  + "\t" + filename  + "\t" + str(round(end - start)) + "\t" + uniqueid + "\n" )

We use the pyspark interpreter to run this Python script, but there's no Spark in here yet.

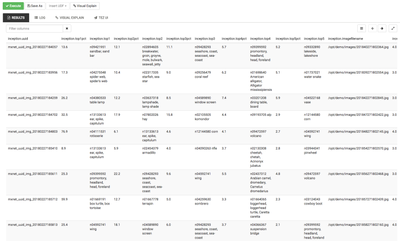

This data also gets loaded in Apache Hive via Apache NiFi as shown here:



Deep Learning Models

You will need to download the pre-built Inception models and reference them on your server.

synset.txt

Inception-BN-0000.params

Inception-BN-symbol.json

See: https://mxnet.incubator.apache.org/tutorials/embedded/wine_detector.html

curl --header 'Host: data.mxnet.io' --header 'User-Agent: Mozilla/5.0 (Macintosh; Intel Mac OS X 10.11; rv:45.0) Gecko/20100101 Firefox/45.0' --header 'Accept: text/html,application/xhtml+xml,application/xml;q=0.9,*/*;q=0.8' --header 'Accept-Language: en-US,en;q=0.5' --header 'Referer: http://data.mxnet.io/models/imagenet/' --header 'Connection: keep-alive' 'http://data.mxnet.io/models/imagenet/inception-bn.tar.gz' -o 'inception-bn.tar.gz' -L

curl http://data.mxnet.io/models/imagenet/synset.txt


More Models

http://data.mxnet.io/models/imagenet/


Source Code

https://github.com/tspannhw/mxnet-in-notebooks

https://github.com/tspannhw/ApacheBigData101

References

If you want to run in DSX or Jupyter:

https://community.hortonworks.com/articles/176784/deep-learning-101-using-apache-mxnet-in-dsx-notebo...

Setup

If you need to setup Apache MXNet on HDF: https://community.hortonworks.com/articles/174227/apache-deep-learning-101-using-apache-mxnet-on-an....

Other Articles in The Series

https://community.hortonworks.com/articles/174538/apache-deep-learning-101-using-apache-mxnet-with-h...

https://community.hortonworks.com/articles/174399/apache-deep-learning-101-using-apache-mxnet-on-apa...

https://community.hortonworks.com/articles/155435/using-the-new-mxnet-model-server.html

https://community.hortonworks.com/articles/171960/using-apache-mxnet-on-an-apache-nifi-15-instance-w...
