In preparing for my talk at DataWorksSummit in Australia, I wanted to try yet another way to integrate Apache NiFi with TensorFlow.  The common ways being:   calling a Python TensorFlow script from Execute Command, calling a TensorFlow Serving server via gRPC, calling a C++ TensorFlow executable via Execute Command, running TensorFlow on the edge and having MiniFi send it to NiFi or calling a TensorFlowOnSpark job via Kafka, Site-to-Site.

TensorFlow has released a Java API (https://www.tensorflow.org/install/install_java), so I decided to write a quick custom processor to run TensorFlow Inception v3.

It's a simple set of dependencies for Maven:

    <dependencies>
        <dependency>
            <groupId>org.apache.nifi</groupId>
            <artifactId>nifi-api</artifactId>
        </dependency>
        <dependency>
            <groupId>org.apache.nifi</groupId>
            <artifactId>nifi-processor-utils</artifactId>
        </dependency>
        <dependency>
            <groupId>org.apache.nifi</groupId>
            <artifactId>nifi-mock</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>org.slf4j</groupId>
            <artifactId>slf4j-simple</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <scope>test</scope>
        </dependency>
   <dependency>
         <groupId>org.tensorflow</groupId>
         <artifactId>tensorflow</artifactId>
         <version>1.2.1</version>
       </dependency>
    </dependencies>



It's easy to add the new processor NiFi. First build it mvn install (see my build script), then deploy it:

cp nifi-tensorflow-nar/target/nifi-tensorflow-nar-1.0.nar /Volumes/Transcend/Apps/nifi-1.2.0/lib

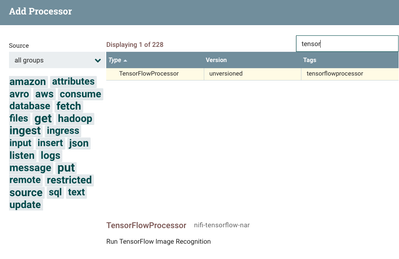

Once you restart NiFi, you can add the TensorFlow Processor.

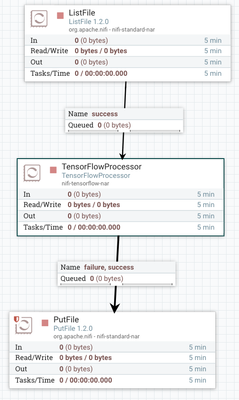

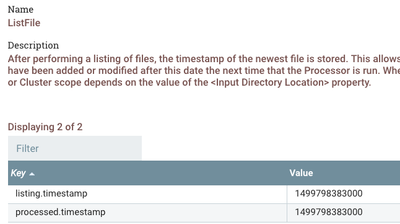

An example flow is to the use the very smart ListFile which will iterate through a list of files and keep track of which the last timestamp of files it accessed. So I point to a directory of files and the NiFi processor gets fed a ton of images to very quickly process. This is much faster than my calling out to a script.

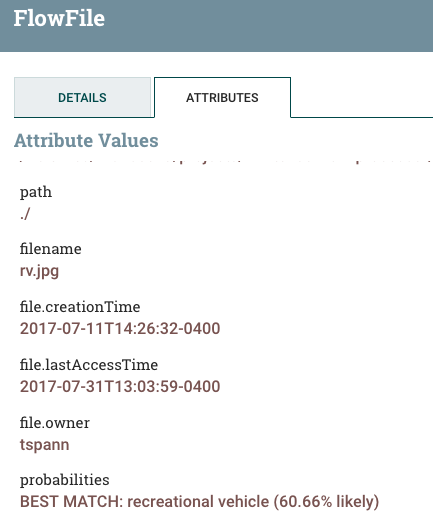

The result of the run is a new attribute, probabilities, which is a string description of what it could be a confidence percentage as text.


This was the guess for the picture of my RV:


Source:

https://github.com/tspannhw/nifi-tensorflow-processor

Resources:


5,422 Views
Comments
Super Guru

There has been a major upgrade of the processor thanks to @Simon Elliston Ball Check out the latest version 2.1.

I am also prototyping a DL4J processor based on this and some code from the SkyMind guys.
