IOT: Ingesting GPS Data from ODroid XU4 Devices with Apache MiniFi and Python

[#1]

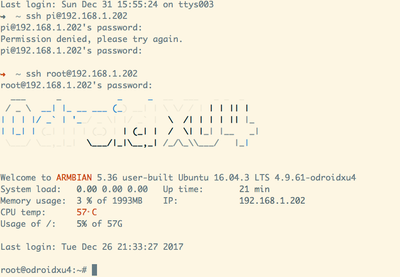

Initial Login to ODroid XU4

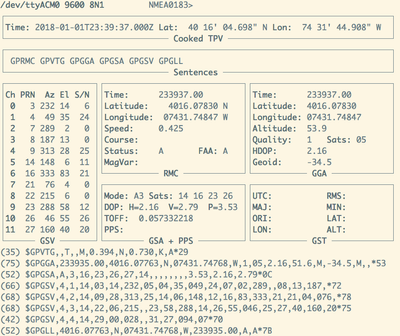

GPS Command Line Check

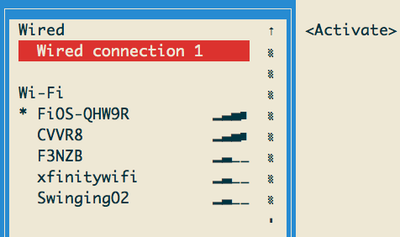

WiFi Signal Strength

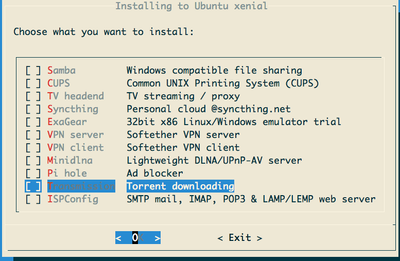

Install Ubuntu Extras

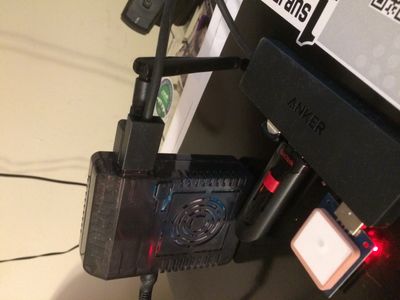

Above is our device with GPS

The ODroid XU4 is a powerful little inexpensive IoT device. It is similar to a Raspberry PI and compatible with many of the libraries. I chose to install ARMBIAN Ubuntu which is a good OS. It is very easy to add GPS libraries, Apache MiniFi, JDK 8 and Python for processing.

Apache NiFi processing flow

Apache MiniFi Flow on Device

Apache NiFi Processing

See: https://community.hortonworks.com/content/kbentry/155604/iot-ingesting-camera-data-from-nanopi-duo-d...

Source Code

https://github.com/tspannhw/odroidxu4-gps-python-minifi

Software

sudo apt-get update

sudo apt-get upgrade

sudo apt-get dist-upgrade

armbian-config

sudo add-apt-repository ppa:webupd8team/java

sudo apt-get update

sudo apt-get install oracle-java8-installer -y

sudo apt-get install oracle-java8-set-default -y

blkid

swapon /dev/sda1

sudo apt-get install gpsd gpsd-clients

sudo dpkg-reconfigure gpsd

sudo gpsmon /dev/ttyACM0

sudo apt-get install python-gps

cgps -s

Resources

• http://www.hardkernel.com/main/products/prdt_info.php?g_code=G148048570542
• https://wiki.odroid.com/odroid-xu4/gettingstart/linux/install_linux
• https://magazine.odroid.com
• https://magazine.odroid.com/wp-content/uploads/odroid-xu4-user-manual.pdf#page=6 https://magazine.odroid.com/article/running-yolo-odroid-yolodroid/
• http://machinethink.net/blog/object-detection-with-yolo/
• https://www.armbian.com/odroid-xu4/
• https://docs.armbian.com/
• https://docs.armbian.com/User-Guide_Getting-Started/
• https://forum.armbian.com/topic/1768-booting-into-command-line-on-opi-pc/
• https://docs.armbian.com/User-Guide_Armbian-Config/
• https://magazine.odroid.com/wp-content/uploads/ODROID-Magazine-201712.pdf
• https://magazine.odroid.com/article/running-yolo-odroid-yolodroid/
• https://wiki.odroid.com/odroid-xu4/odroid-xu4
• https://www.packtpub.com/books/content/working-webcam-and-pi-camera

Hardware

Armbian Ubuntu 16.04.3 LTS 4.9.61-odroidxu4

Two quad core CPUs and a GPU 2GB LPDDR3

USB 3

Power Supply

Powered USB Hub

Active Cooling Fan

Stratus GPYes USB GPS Device

Example Run of GPS Device

root@odroidxu4:/opt/demo# ./gps2.sh
[{"utc": "2018-01-02T00:19:25.000Z", "epx": "25.829", "epv": "62.56", "diskfree": "54166.8 MB", "altitude": "41.844", "memory": 7.6, "eps": "1.43", "longitude": "-74.529222193", "ts": "2018-01-02 00:19:23", "ept": "0.005", "host": "odroidxu4", "track": "141.59", "mode": "3", "time": "2018-01-02T00:19:25.000Z", "latitude": "40.268098177", "climb": "-0.042", "ipaddress": "192.168.1.202", "cputemp": 53.0, "speed": "0.189"}]

Software and Device Setup

We need to setup a Swap area to deal with not enough RAM for builds.

root@odroidxu4:~# sudo blkid
/dev/mmcblk1p1: UUID="7a81b72b-eee2-428f-9706-2aa0bd7e766f" TYPE="ext4" PARTUUID="7cbb190c-01"
/dev/zram7: UUID="794ef788-2696-4f56-97da-8c9e179be92d" TYPE="swap"
/dev/zram0: UUID="99613ecb-d41b-4dbe-a85c-2134800fcd8e" TYPE="swap"
/dev/zram1: UUID="57aaeb7c-b970-456d-a415-3e9151dc5fbf" TYPE="swap"
/dev/zram2: UUID="61a42b3a-e605-49e4-844b-467212228878" TYPE="swap"
/dev/zram3: UUID="7f7539df-3500-489b-990b-929d09896a42" TYPE="swap"
/dev/zram4: UUID="49d3a36a-5150-4c31-8acc-c77c512f8a31" TYPE="swap"
/dev/zram5: UUID="9ae98fa0-507d-415a-95d3-e24e9a4a8b2f" TYPE="swap"
/dev/zram6: UUID="4644d45f-dd3e-4bab-9507-1e28fe4b9d40" TYPE="swap"
/dev/mmcblk1: PTUUID="7cbb190c" PTTYPE="dos"
/dev/sda1: UUID="3C09-B728" TYPE="vfat"
root@odroidxu4:~# sudo mkswap /dev/sda1
mkswap: /dev/sda1: warning: wiping old vfat signature.
Setting up swapspace version 1, size = 114.6 GiB (123010527232 bytes)
no label, UUID=24360a18-0939-47b1-b383-27982d8a2007
root@odroidxu4:~# sudo swapon /dev/sda1
root@odroidxu4:~# sudo swapon
NAME       TYPE        SIZE USED PRIO
/dev/zram0 partition 124.6M   0B    5
/dev/zram1 partition 124.6M   0B    5
/dev/zram2 partition 124.6M   0B    5
/dev/zram3 partition 124.6M   0B    5
/dev/zram4 partition 124.6M   0B    5
/dev/zram5 partition 124.6M   0B    5
/dev/zram6 partition 124.6M   0B    5
/dev/zram7 partition 124.6M   0B    5
/dev/sda1  partition 114.6G   0B   -1


sudo apt-get install gpsd gpsd-clients
sudo gpsmon /dev/ttyACM0
sudo cgps -s
sudo apt-get install python-gps
sudo apt-get install gpsd gpsd-clients
sudo dpkg-reconfigure gpsd
sudo gpsmon /dev/ttyACM0
sudo pip install psutil
sudo pip install --upgrade pip
sudo pip install psutil

  ___      _           _     _  __  ___   _ _  _
 / _ \  __| |_ __ ___ (_) __| | \ \/ / | | | || |
| | | |/ _` | '__/ _ \| |/ _` |  \  /| | | | || |_
| |_| | (_| | | | (_) | | (_| |  /  \| |_| |__   _|
 \___/ \__,_|_|  \___/|_|\__,_| /_/\_\___/   |_|
Welcome to ARMBIAN 5.36 user-built Ubuntu 16.04.3 LTS 4.9.61-odroidxu4
System load:   0.00 0.01 0.00   Up time:       10 min
Memory usage:  3 % of 1993MB  IP:            192.168.1.202
CPU temp:      58°C
Usage of /:    6% of 57G
[ General system configuration (beta): armbian-config ]
Last login: Mon Jan  1 23:19:21 2018 from 192.168.1.193
pip install --upgrade pip setuptools wheel
pip install -upgrade psutil<br>
